SpeedyBee F405 V4 BLS 55A 30×30 FC&ESC Stack Controller

Product Code: 010

All about product

Description

Specification

Reviews 0

Questions0

new

Bestseller

ХІТ

SpeedyBee F405 V4 BLS 55A 30×30 FC&ESC Stack Controller

In Stock

3 362.00 ₴

Found cheaper?

Buy this product in 1 click:

5 V output:9 groups of 5 V output

Barometer:built-in

BLE Bluetooth:Supported for Flight Controller configuration (MSP enabled with Baud rate 115200 on UART4)

BOOT button:available

Buzzer:available

Delivery

By courier around the city (Odesa)

free delivery

By Nova Poshta to the branch in Ukraine

from 75 ₴

Payment

payment on account

SpeedyBee F405 V4 BLS 55A 30×30 FC&ESC Stack Controller

3 362.00 ₴

Description

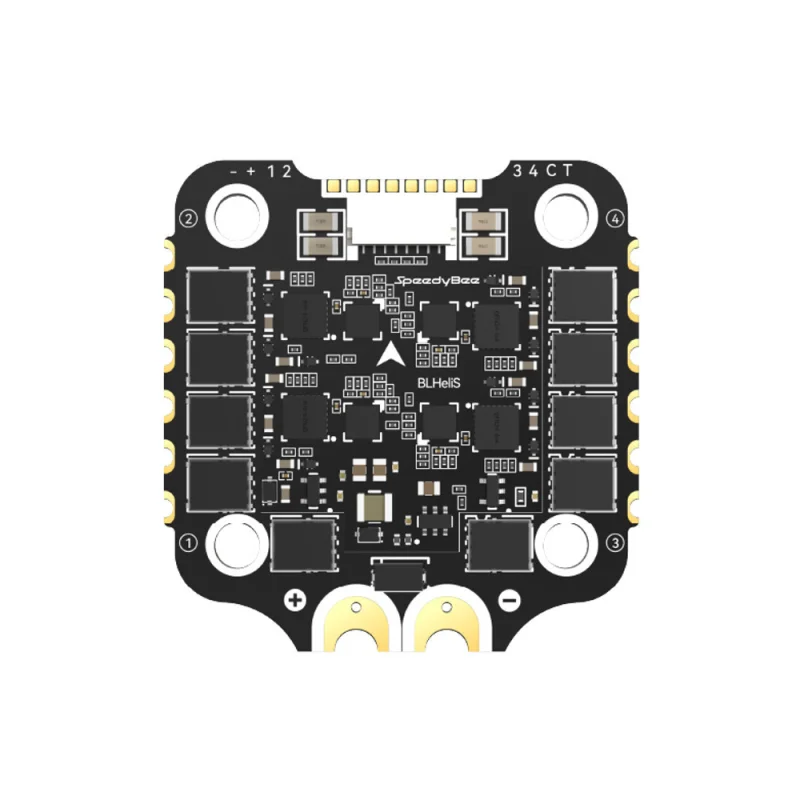

The popular SpeedyBee F405 V4 stack is now an updated version with BLS 55A 4-in-1 ESC, STM32F405 MCU and ICM42688P gyroscope for more precise control. The compact F405 V4 flight controller supports Bluetooth configuration and a 6S LiPo power supply, making it a versatile choice for FPV enthusiasts. Combined with the SpeedyBee BLS 55A 4-in-1 ESC, which provides up to 55A of continuous current, these components make for a powerful and reliable drone.

The compact 30.5 x 30.5mm design is suitable for mounting on a variety of frames. Precise control with STM32F405 MCU and ICM42688P gyroscope. Continuous current from the SpeedyBee BLS 55A ESC controller. Easy setup of the on-board controller via Bluetooth. Compatible with LiPo batteries from 3S to 6S.

sss

Downloads

manual_speedybee_f405_v4_stack_eng

3.86MB

Specifications

Main characteristics

5 V output

9 groups of 5 V output

Barometer

built-in

BLE Bluetooth

Supported for Flight Controller configuration (MSP enabled with Baud rate 115200 on UART4)

BOOT button

available

Buzzer

available

Current sensor

available (Scale=400 Offset=0)

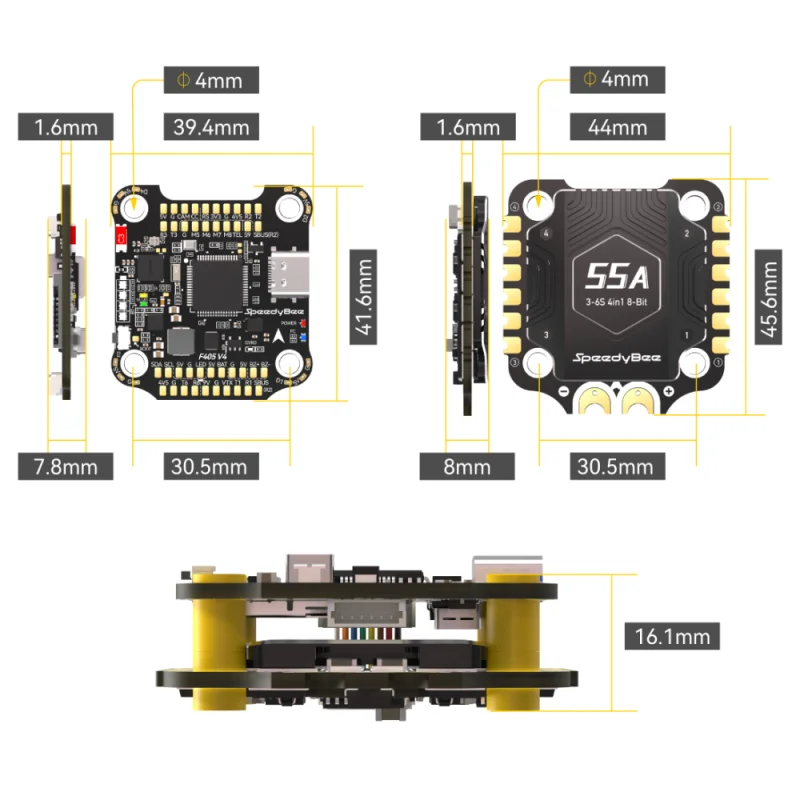

Dimensions of the flight controller

41.6x39.4x7.8mm

Dimensions of the speed controller

45.6х44х8mm

Direct current

55A х 4

DJI Air Unit

Supported and compatible with various DJI models, no need to replace wires

ESC

Telemetry UART R5(UART5)

ESC outputs

M1 - M4 on the bottom side and M5-M8 on the top side

ESC Protocol

DSHOT300/600

External capacitor

1000uF Low ESR Capacitor (included)

Firmware

BLHeli_S JH-40

Firmware support

BetaFlight(Default), INAV

I2C

supported

IMU(Gyro)

ICM42688P

Input current sensor

available (for SpeedyBee BLS 55A ESC, set scale = 400 and offset = 0)

Input power

3-6S LiPo

Installation size

30.5x30.5mm (4mm hole diameter)

Link to PC Configurator

https://esc-configurator.com/

MCU

STM32F405

OSD chip

AT7456E

Output 3.3 V

current load up to 500 mA is supported

Output 4.5V

current load up to 1A is supported

Output 9 V

2 groups of 9 V output

Peak current

70A(10sec)

Power output

VBAT

Programming target

SPEEDYBEEF405V4

RSSI input

available

Smart Port / F.Port

not supported

Support for Blackbox MicroSD memory cards

Compatible with standard (SDSC) or high-capacity (SDHC) cards up to 32 GB

TVS protection

available

UART

6 groups (UART1, UART2, UART3, UART4 (for Bluetooth), UART5 (for ESC telemetry), UART6

USB Port

Type-C

Weight of the flight controller

10.5 g

Weight of the speed controller

23.5g

Wireless configuration

Support for the SpeedyBee program

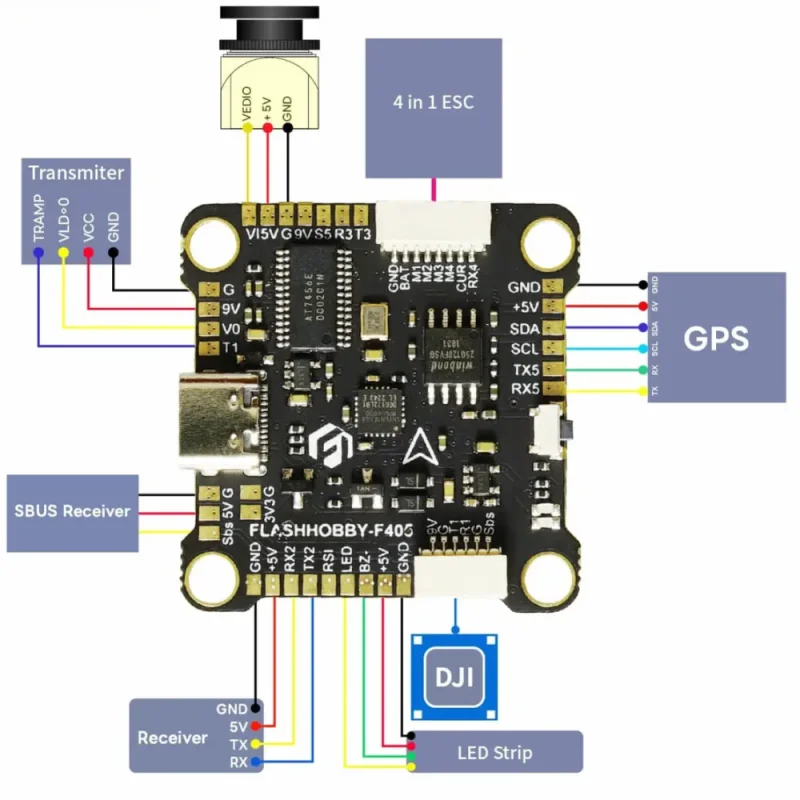

Wiring diagram

30.5x30.5mm (4mm hole diameter)
